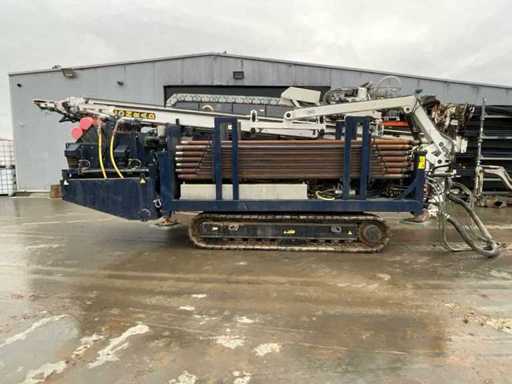

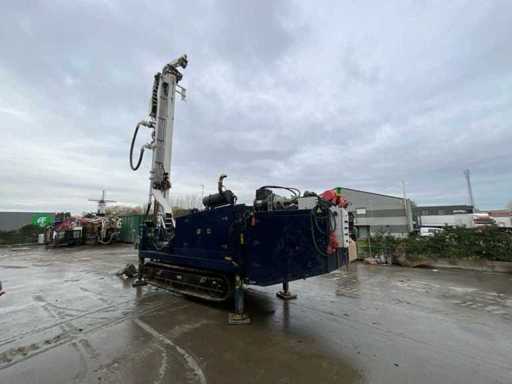

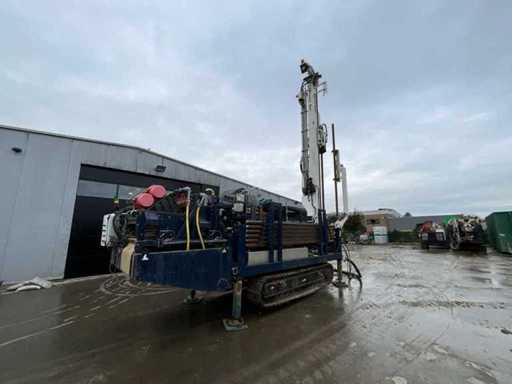

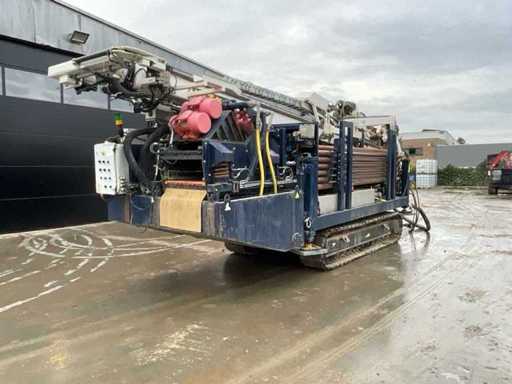

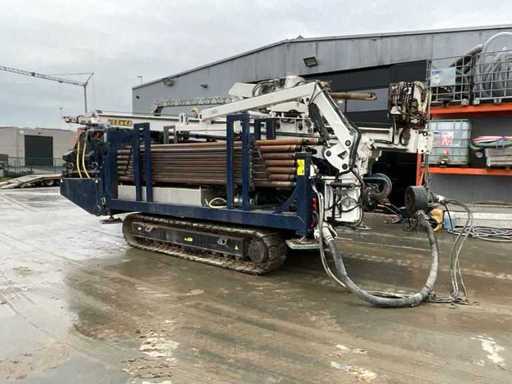

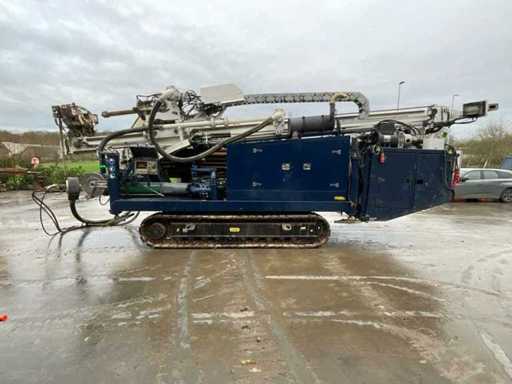

Conrad Boxer 200 Mobiele boorinstallatie

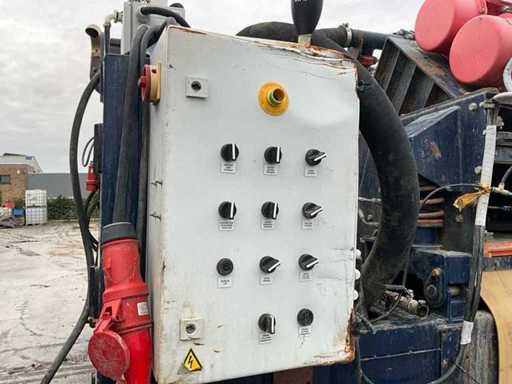

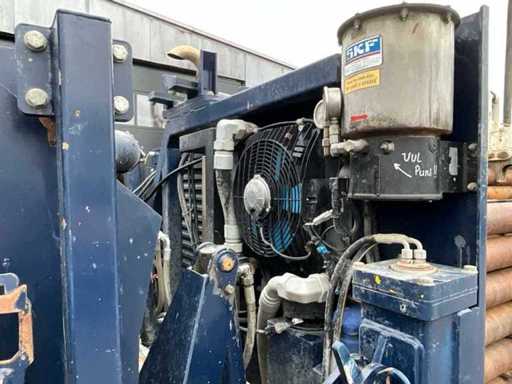

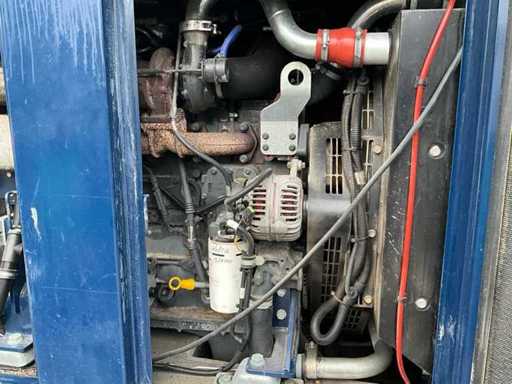

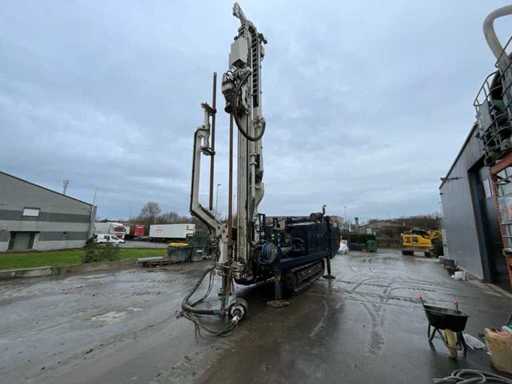

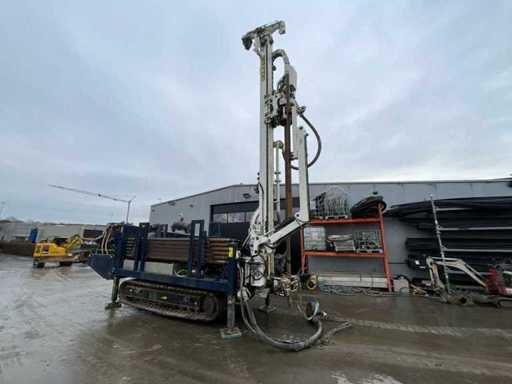

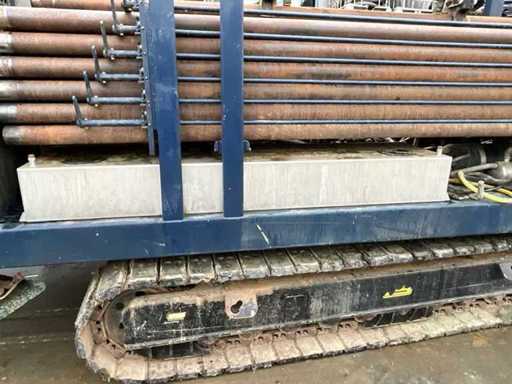

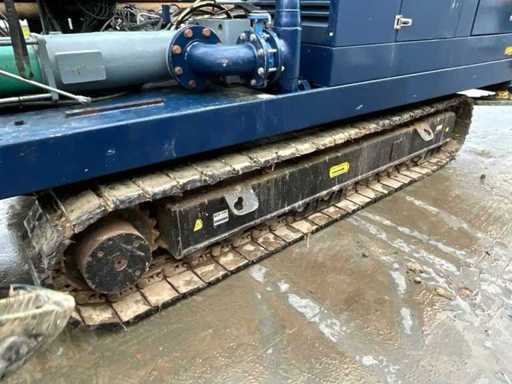

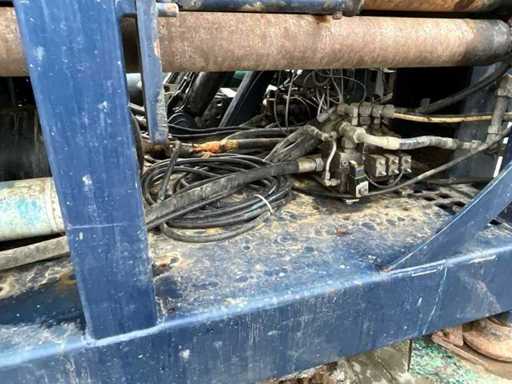

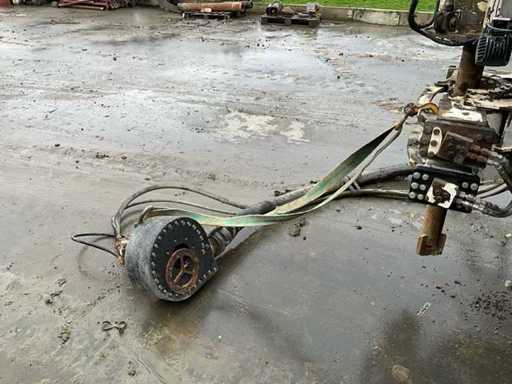

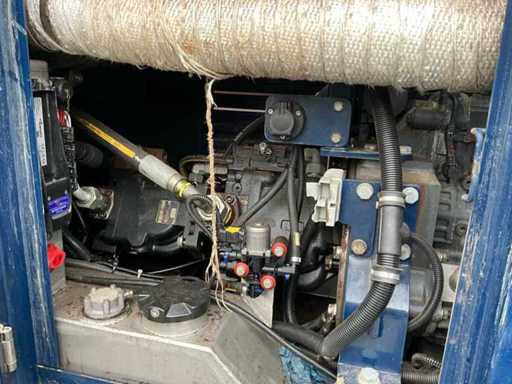

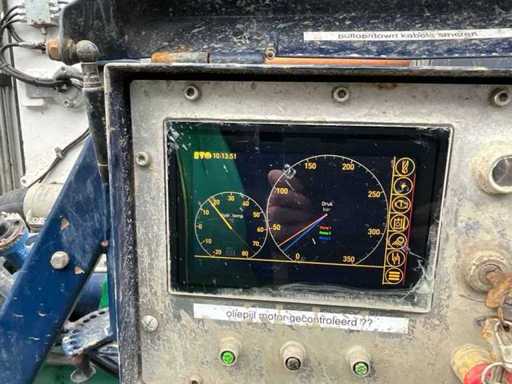

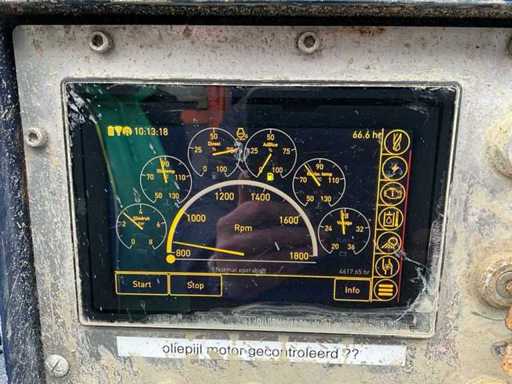

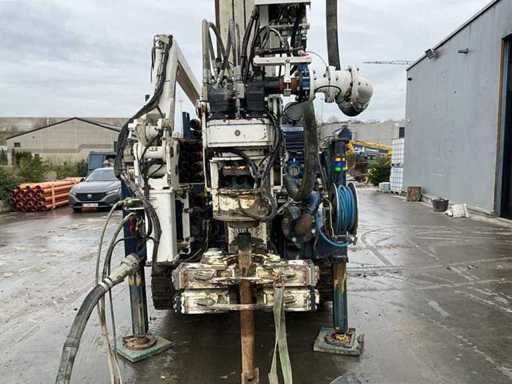

A1. Hydraulically driven crawler undercarriage with rubber-vulcanised track plates, width 400 mm. A2. Self-supporting welded steel underframe with stabilising cylinders. A3. Hydraulically driven slewing ring with 360° rotation. A4. Iveco NEF 45 ENT diesel engine, approx. 125 kW. A5. Fully equipped hydraulic system with stainless steel tank. A6. I-CAN control system with CANbus. A7. Modem installation for remote diagnostics. A8. Radio remote control for drive and drilling. A9. Fixed control panel with lockable protection. A10. Hydraulically foldable mast for 4 m drill rods. A11. Mast translation system with 400 mm stroke. A12. Vertical hydraulic feed system. A13. Drill carriage and guide system. A14. 4-inch hydraulic drill head Conrad T-4-5-600. A15. Hydraulic tilting system. A16. Weight compensator for rod protection. A17. Hose and cable guidance system. A18. Hydraulic upper clamp. A19. Hydraulic flushing pump. A20. Provision for displacement pump. A21. Hydraulic piston pump. A22. 3-inch water circuit with flow meter. A23. Flow control regulation. A24. Hydraulic breaking clamp. A25. Drill rod storage cassette. A26. Pipe handling manipulator. A27. Semi-automatic pipe handling. A28. Hydraulic auxiliary connections. A29. LED mast lighting. A30. Stainless steel water tank 300 L. A31. Laser scanner safety system. A32. 24 V electrical connection. A33. Hydraulic generator 6 kVA. A34. Automatic lubrication system. A35. Shot blasted and painted structure. A36. Additional protective coating. A37. Exhaust extraction structure. A38. Manuals delivered in duplicate. A39. Handover and operator training. Transport Data: Dimensions: approx. 8.8 x 2.0 x 3.0 m Weight: approx. 13 tonnes (excluding drill rods
